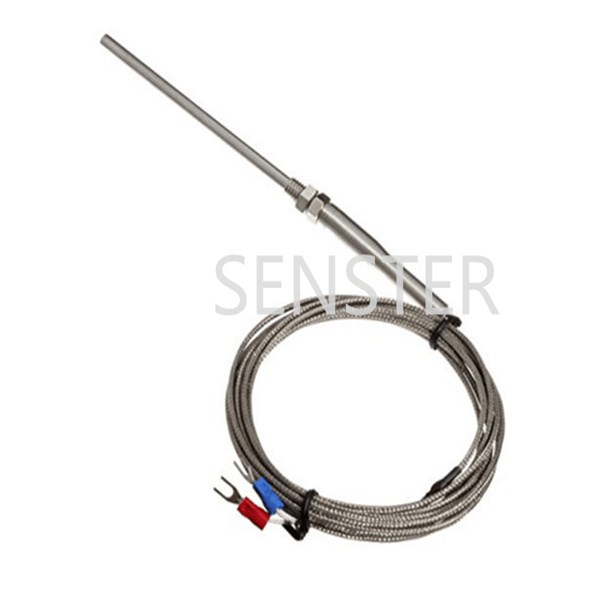

K Thermocouple with U Shape Connectors

Technical Data:

Model NO:WRNK-TS23-295

Type: K thermocouples

Sheath: SS304 Φ5*120mm（Included thread length)

Thread:SS304 M8*1.25mm, thread length:15mm, with nut

Spring: Φ6*50mm

Connectors: M4 U shape

Cable: K thermocouple Stainless steel braided cable, cable length:3500mm

Operating Temperature: -50-400℃

Operating Current:≤ 5mA

Other: water-proof, Corrosion-proof

Custom designs of protection tube, cable length, mounting way are available.

Applications: Metal melting pot, building automation system, fire alarm system, chambers, lab equipment, food processing, HVAC, incubator, bath.
