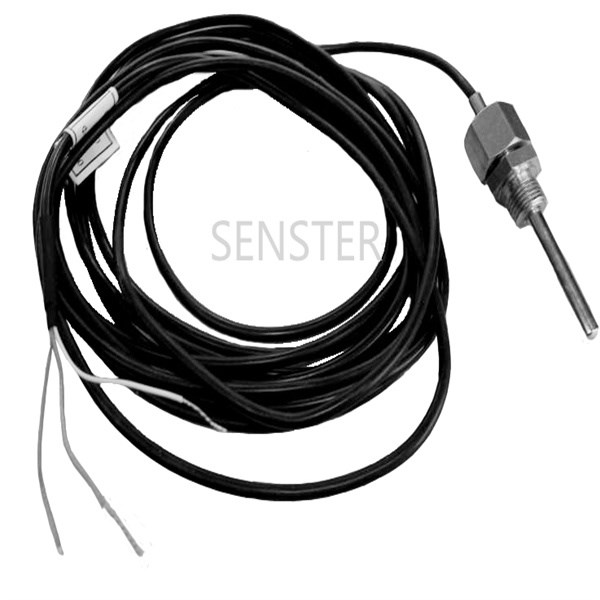

Pt1000 Temperature Sensor with Silicone Cable

Technical Data:

Model NO:PT1000-TS56-296

Pt element: PT1000 A (accuracy ±0.15℃）

Protection Tube: SUS304 Φ6*70mm(including thread length 20mm)

Thread: SS304 G1/2, G1/4, G3/4,NPT3/8, M12*1.5mm，thread length:20mm,

Cable: PVC, 3-wire, cable Length:3500mm, no connectors or needle connectors

Operating Temperature: -50-100℃

Operating Current:≤ 5mA

Other: water-proof, Corrosion-proof

Custom designs of protection tube, cable length, mounting way are available.

Applications: Air compressors, dry type transformers, building automation system, fire alarm system, chambers, lab instruments, food processing, HVAC, incubator, bath, cabinet, oil&energy, wind power.
