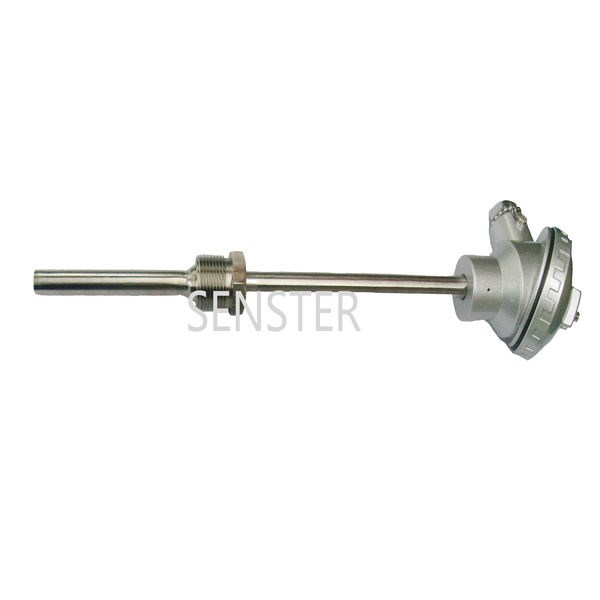

Pt100 Temeprature Probe with Terminal Head

Technical Data:

Model NO:PT100-TS79-398

Pt element: Double PT100 A (accuracy ±0.15℃）

Protection Tube:SS316 8*300mm

Thread: SS304 M20*1.75, G1/2,NPT1/2, thread length 25mm

Terminal Head: 3-wire, resistance or 4-20mA or 1-5V output.

Operating Temperature: -50-350℃

Operating Current:≤ 5mA

Other: water-proof, Corrosion-proof

Custom designs of protection tube, cable length, mounting way are available.

Applications: Air compressors, dry type transformers, building automation system, fire alarm system, chambers, lab instruments, food processing, HVAC, incubator, bath, cabinet, oil&energy,
